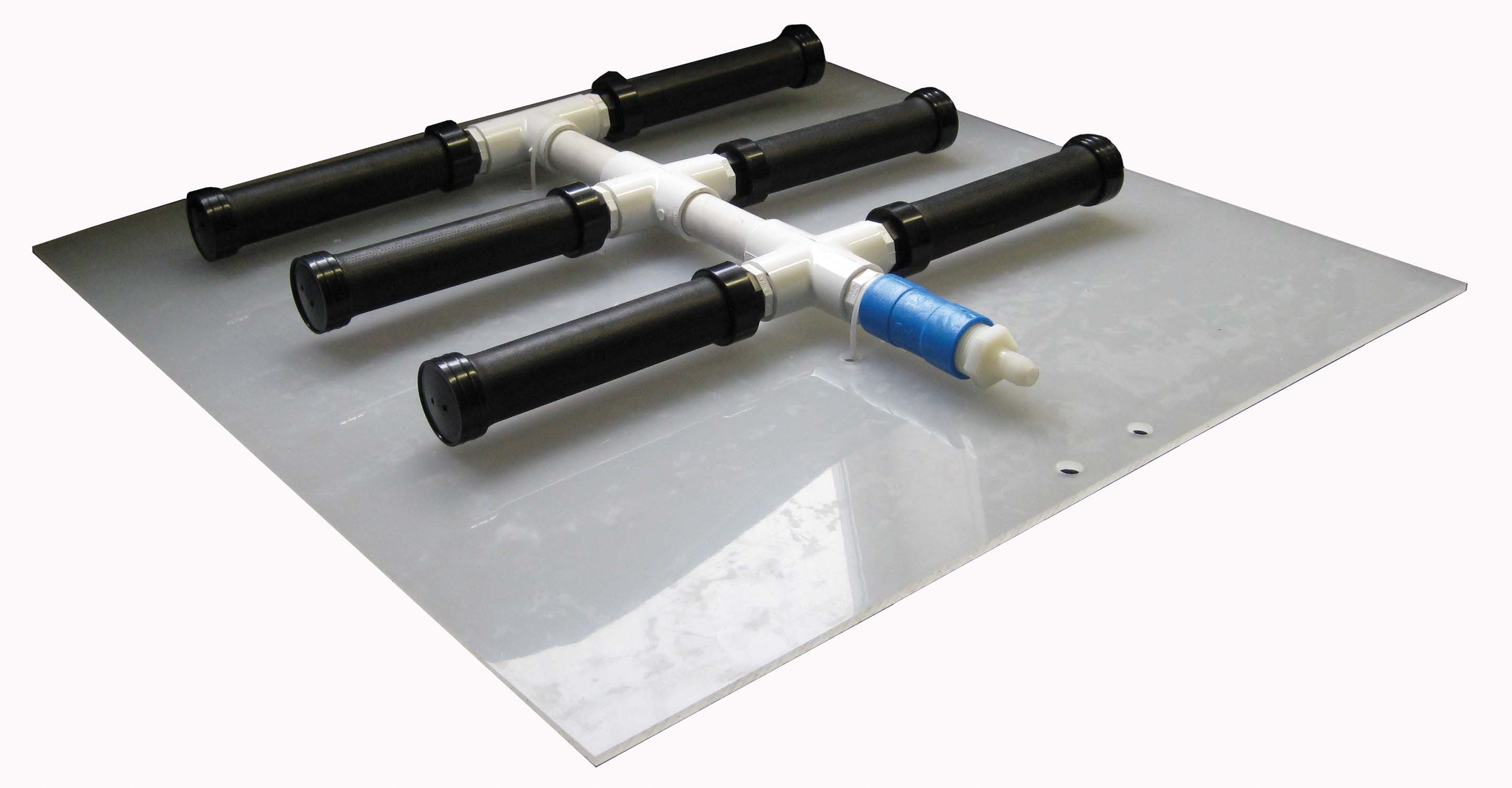

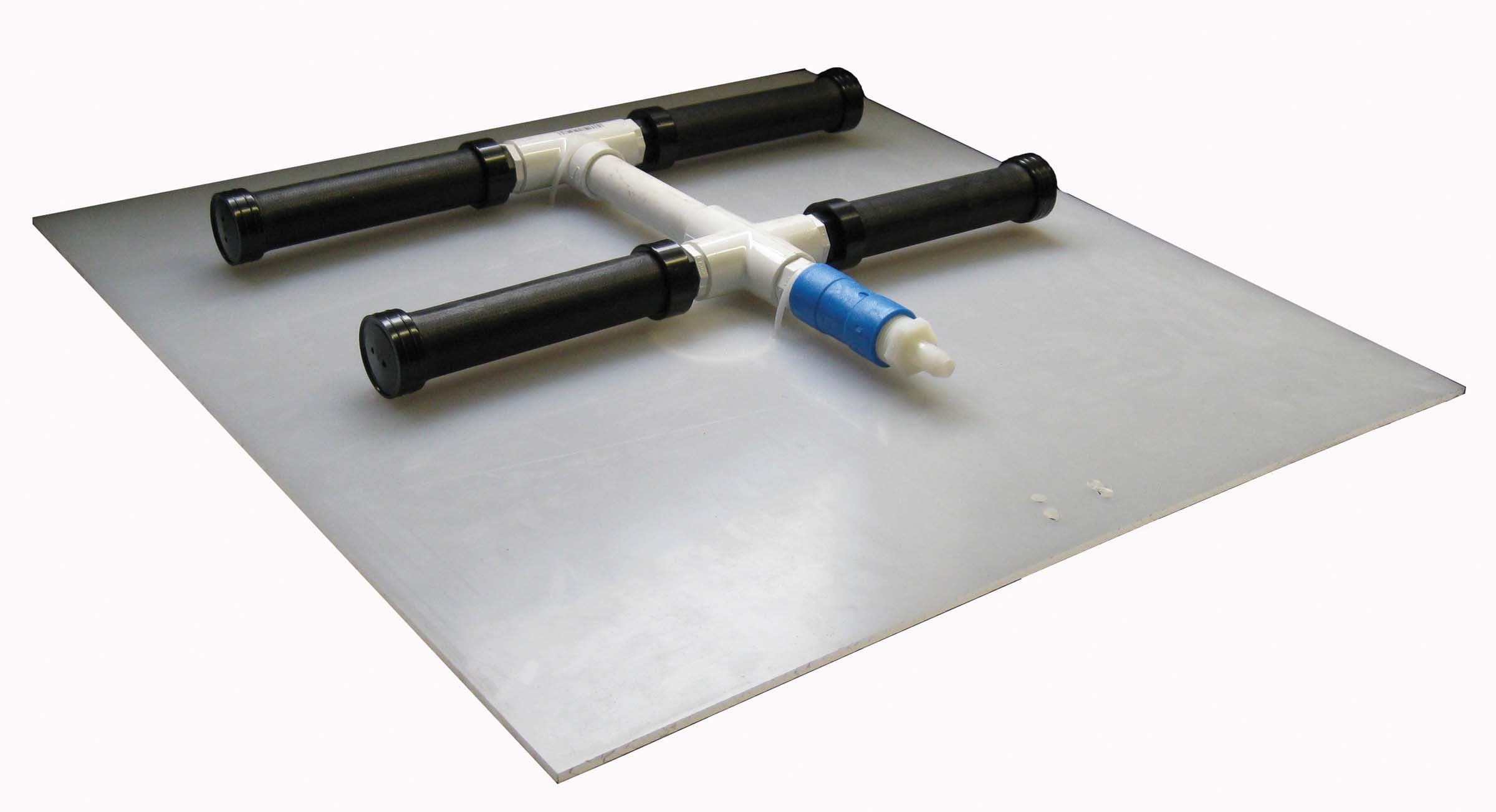

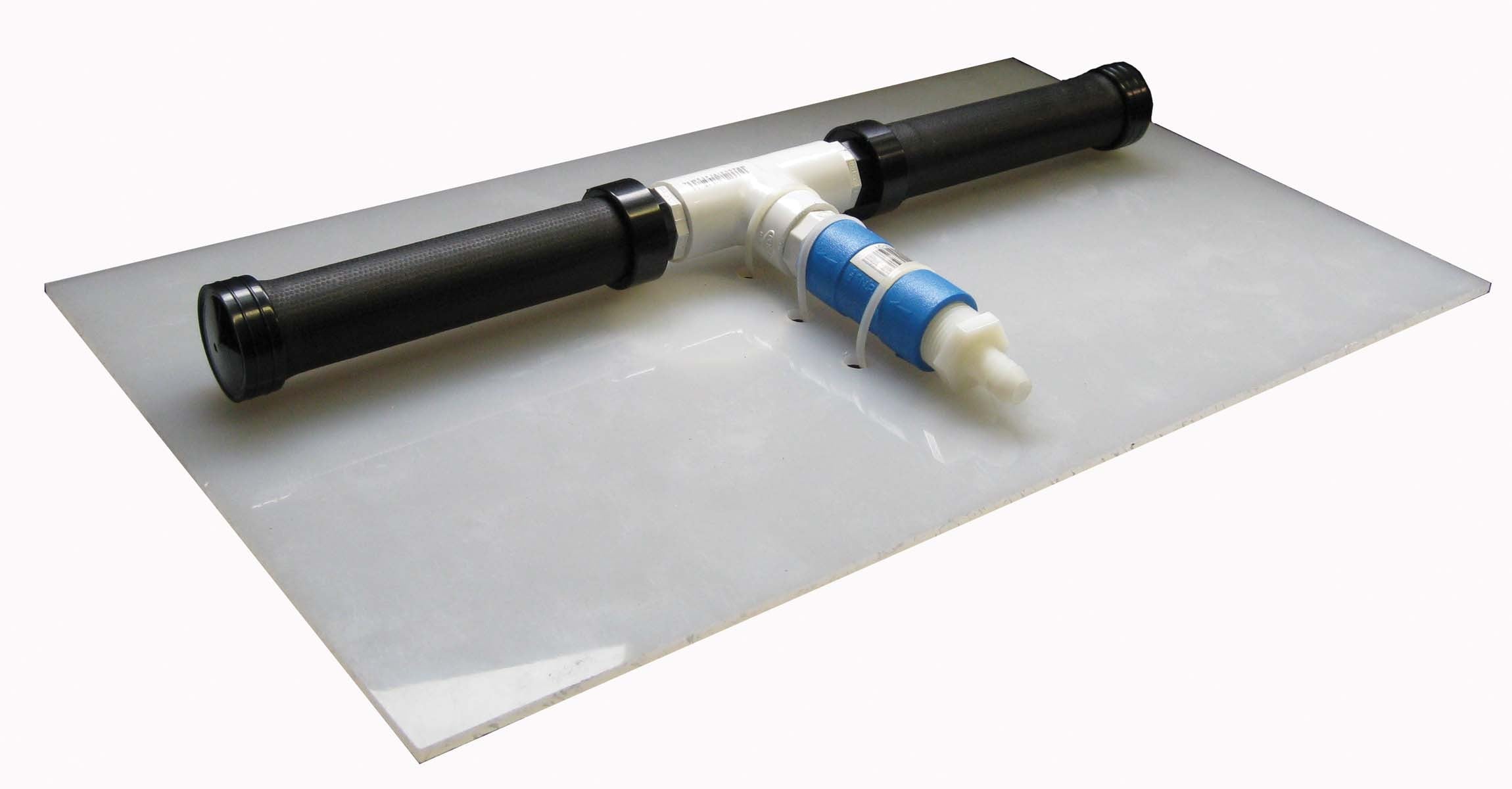

EasyPro DM Series Air Diffuser Manifolds with Polyethylene Underlay

SKU: ZSC-DM2
Type: Aeration Diffusers
Current Price $85.49
Original Price $94.99

These self-weighted systems are ready to connect to your 3/8" or 1/2" ID aeration tubing. The polyethylene underlay keep diffusers from settling into the mud and prevents sediment erosion during operation.

Choose from rubber membrane diffusers or alumina air stone pond diffusers.

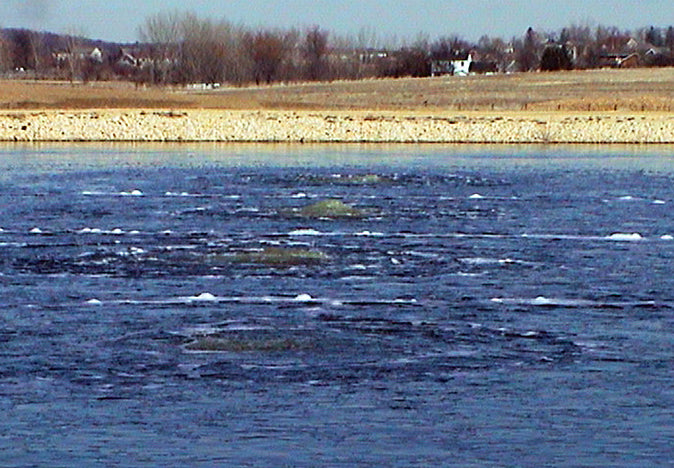

The rubber membrane diffusers are incredibly strong and ideal for pond aeration, circulation, and destratifying applications.

Alumina air stone pond diffusers are the best choice for aquaculture applications. They create finer bubbles than the rubber membrane diffusers and therefore provide better oxygen transfer.

Includes check valve to prevent water from filling air line when not in use, strain relief barb fitting for 3/8″ or 1/2″ ID tubing connection, underlay, and clamp.

Type of Diffusers
Number of Diffusers

Notify me when back in stock

Use for:

  • Diffuser / Aerator

Features

Now self-weighted for easy installation

Includes check valve to prevent water from filling air line when not in use

Polyethylene underlay keep diffusers from settling into the mud and prevents sediment erosion during operation

Read more Read Less

feature_image
variant--img

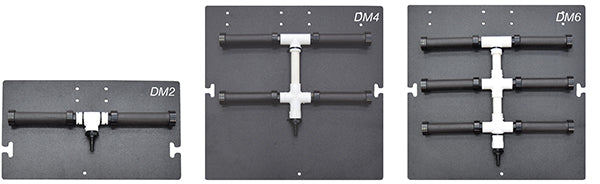

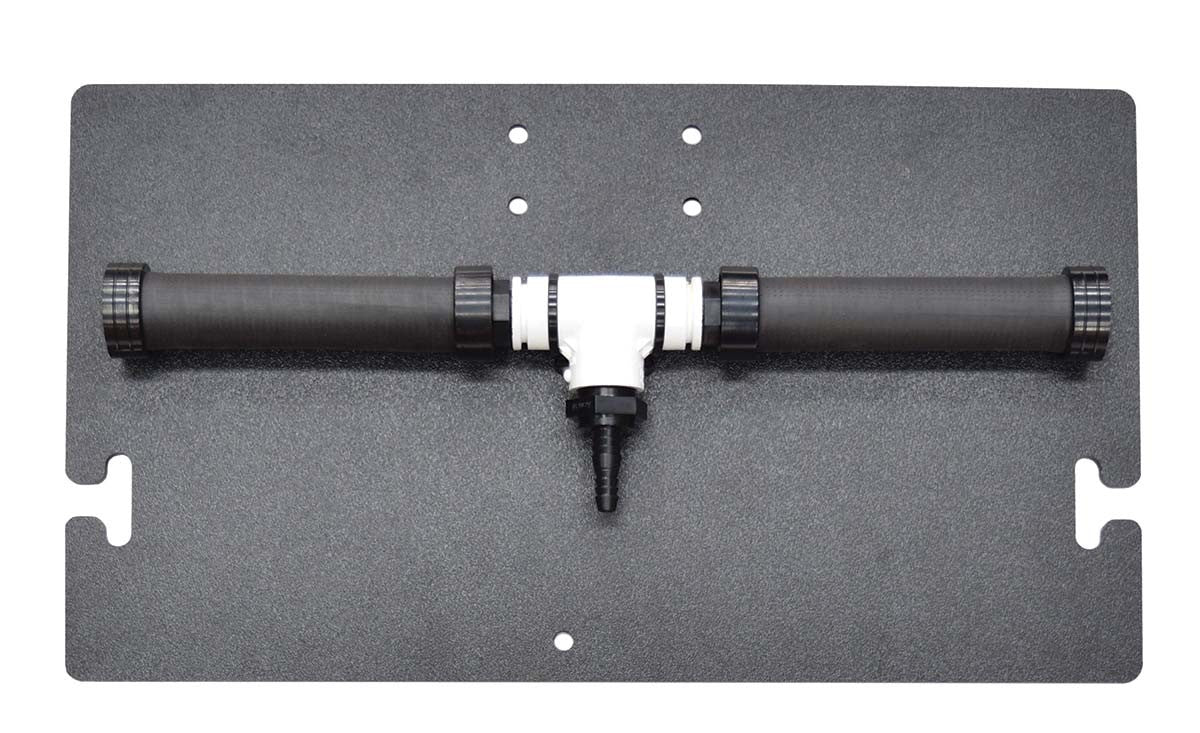

EasyPro DM2

Ship Weight: 9 lbs

variant--img

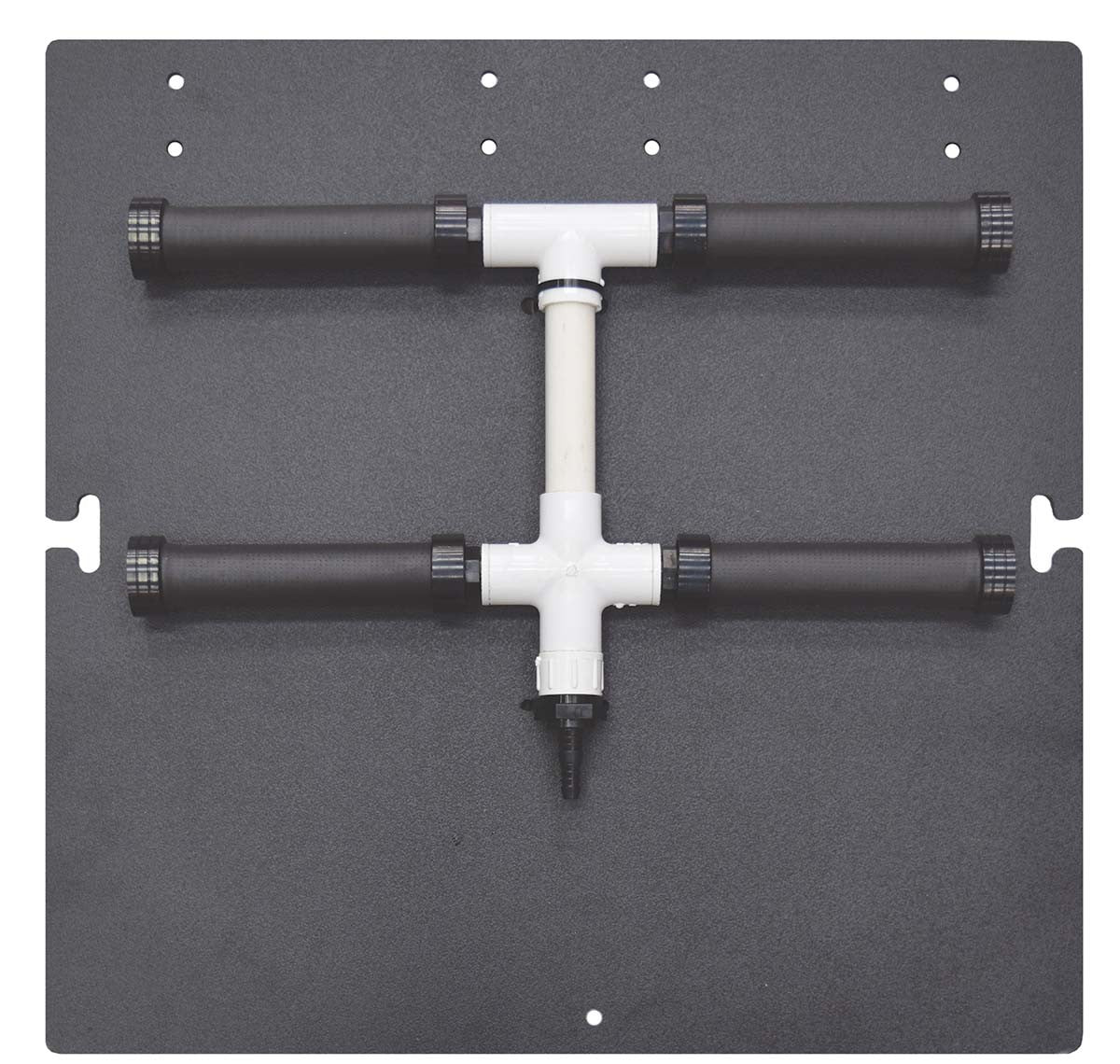

EasyPro DM4

Ship Weight: 11 lbs

variant--img

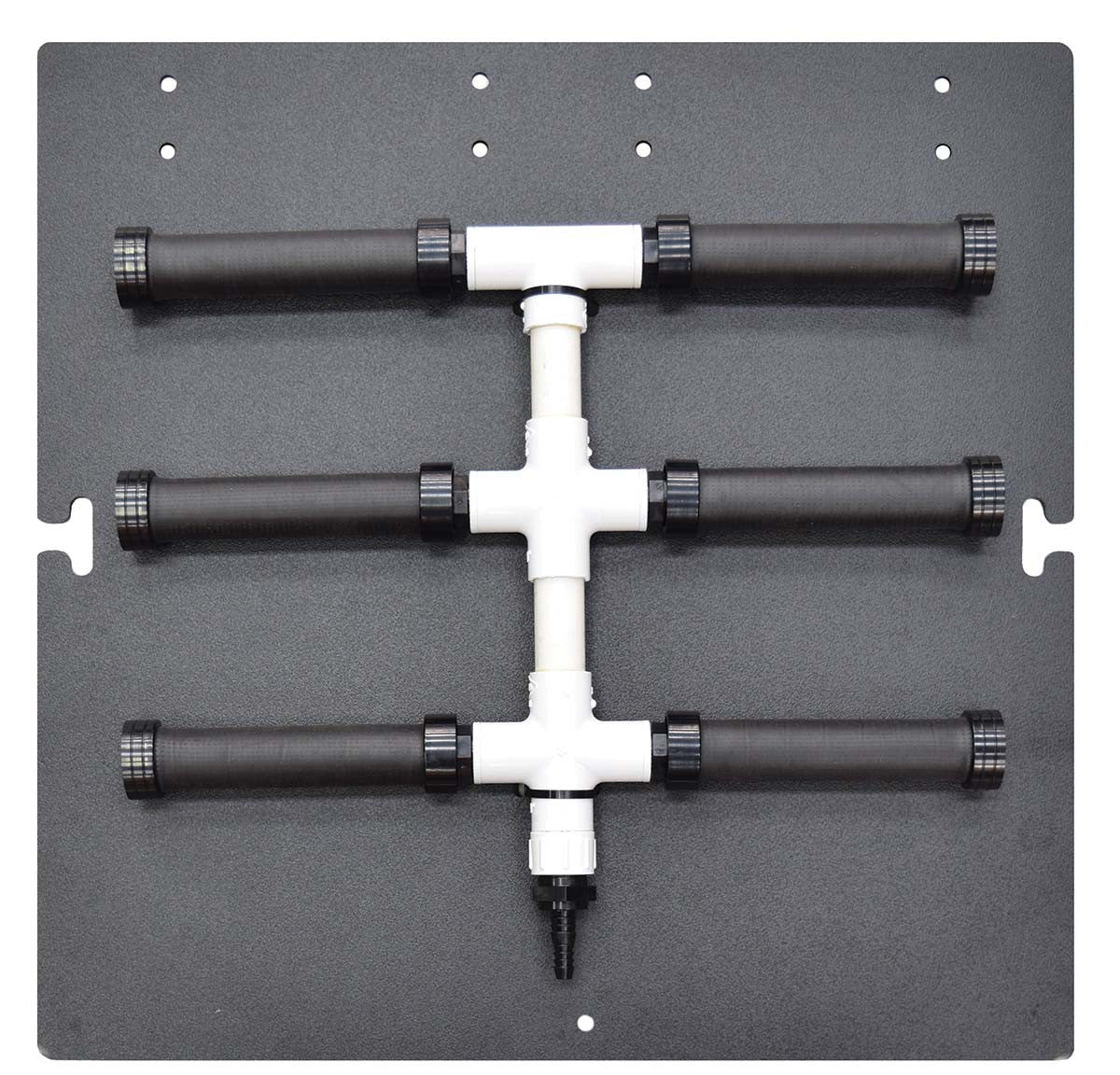

EasyPro DM6

Ship Weight: 14 lbs

variant--img

EasyPro DM2S

Ship Weight: 8 lbs

variant--img

EasyPro DM4S

Ship Weight: 9 lbs

variant--img

EasyPro DM6S

Ship Weight: 10 lbs

faq-img

Specification

Recommended Air Flow

  • DM2: 0.8 - 3.4 CFM
  • DM4: 1.6 - 6.8 CFM
  • DM6: 2.4 - 10.2 CFM
  • DM2S: 1.0 - 1.4 CFM
  • DM4S: 2.0 - 2.8 CFM
  • DM6S: 3.0 - 4.2 CFM

Tubing Connection

  • DM2: 3/8" and 1/2"
  • DM4: 3/8" and 1/2"
  • DM6: 3/8", 1/2", and 5/8"
  • DM2S: 3/8" and 1/2"
  • DM4S: 3/8" and 1/2"
  • DM6: 3/8", 1/2", and 5/8"

Size Of Underlay

  • DM2: 11.25" x 20"
  • DM4: 22.5" x 22.5"
  • DM6: 22.5" x 22.5"
  • DM2S: 11.25" x 20"
  • DM4S: 22.5" x 22.5"
  • DM6S: 22.5" x 22.5"

Diffuser Models

  • DM2: ZSC-RAD650W
  • DM4: ZSC-RAD650W
  • DM6: ZSC-RAD650W
  • DM2S: ZSC-AS650
  • DM4S: ZSC-AS650
  • DM6S: ZSC-AS650

Read more Read Less

Description

These are self-weighted systems are ready to connect to your 3/8" or 1/2" ID aeration tubing.

Choose from rubber membrane diffusers or almunia air stone diffusers

The rubber membrane diffusers are incredibly strong and ideal for pond aeration, circulation, and destratifying applications.

Alumina air stone diffusers are the best choice for aquaculture applications. They create finer bubbles than the rubber membrane diffusers and therefore provide better oxygen transfer.

The polyethylene underlay keep diffusers from settling into the mud and prevents sediment erosion during operation.

Includes check valve to prevent water from filling air line when not in use, strain relief barb fitting for 3/8″ or 1/2″ ID tubing connection, underlay, and clamp.
