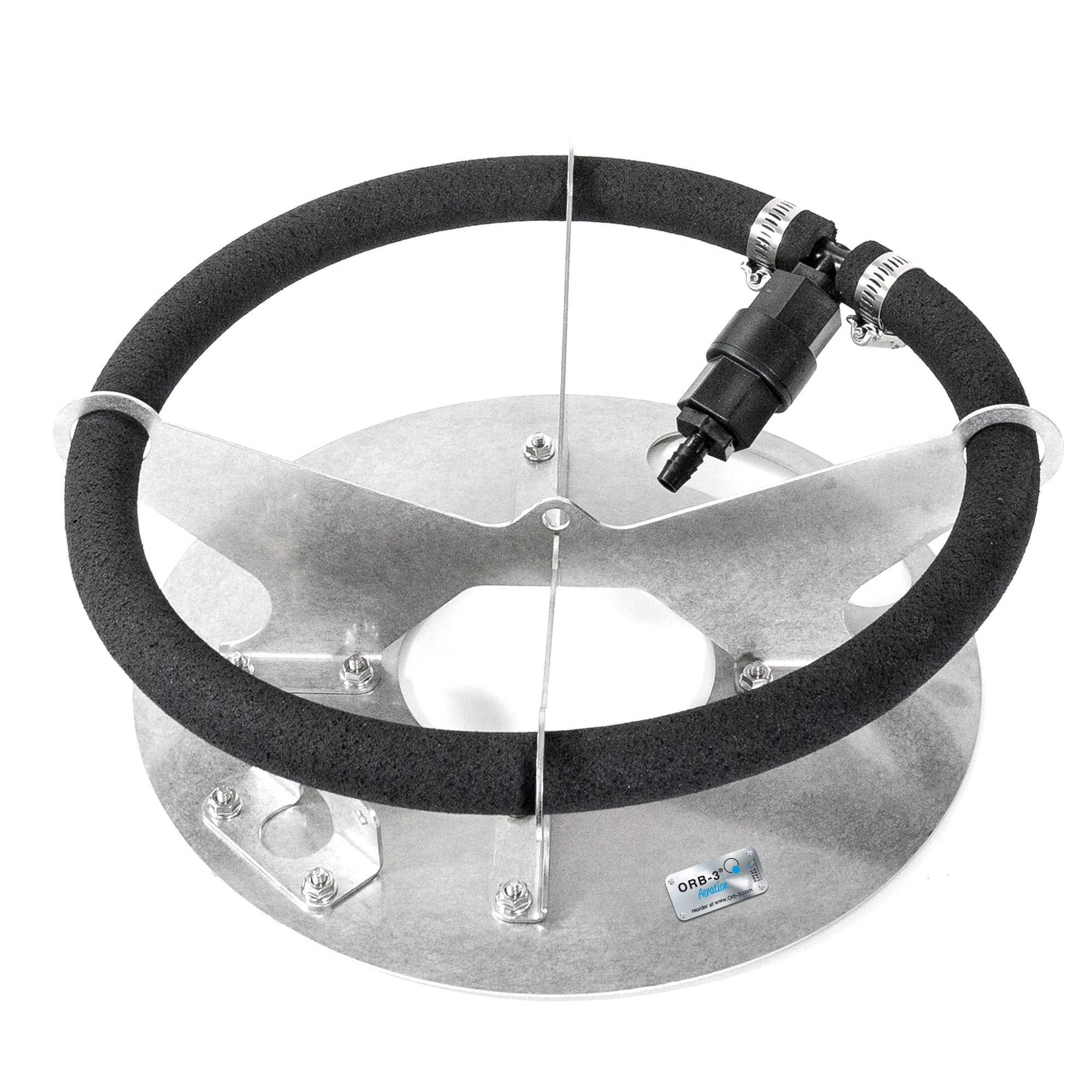

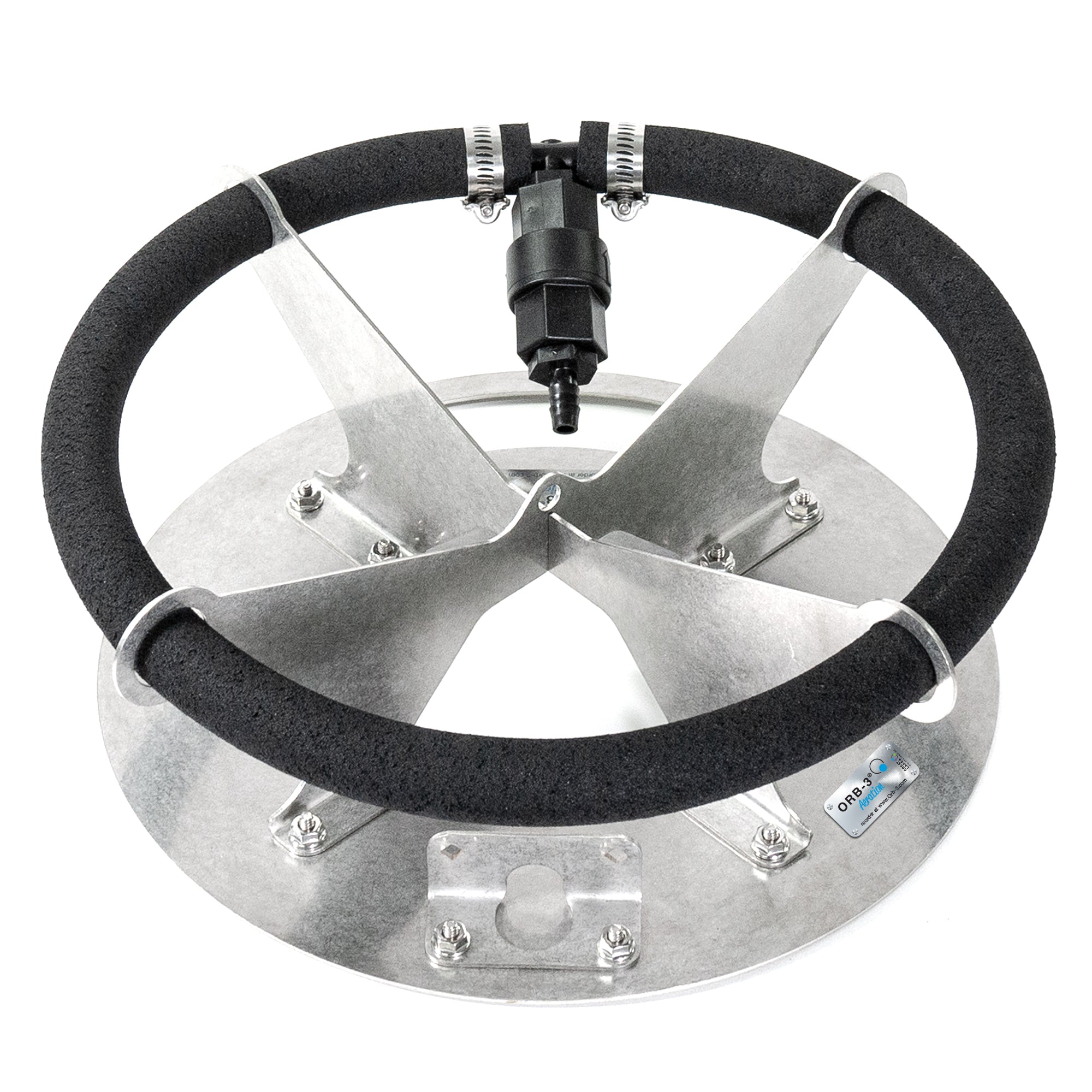

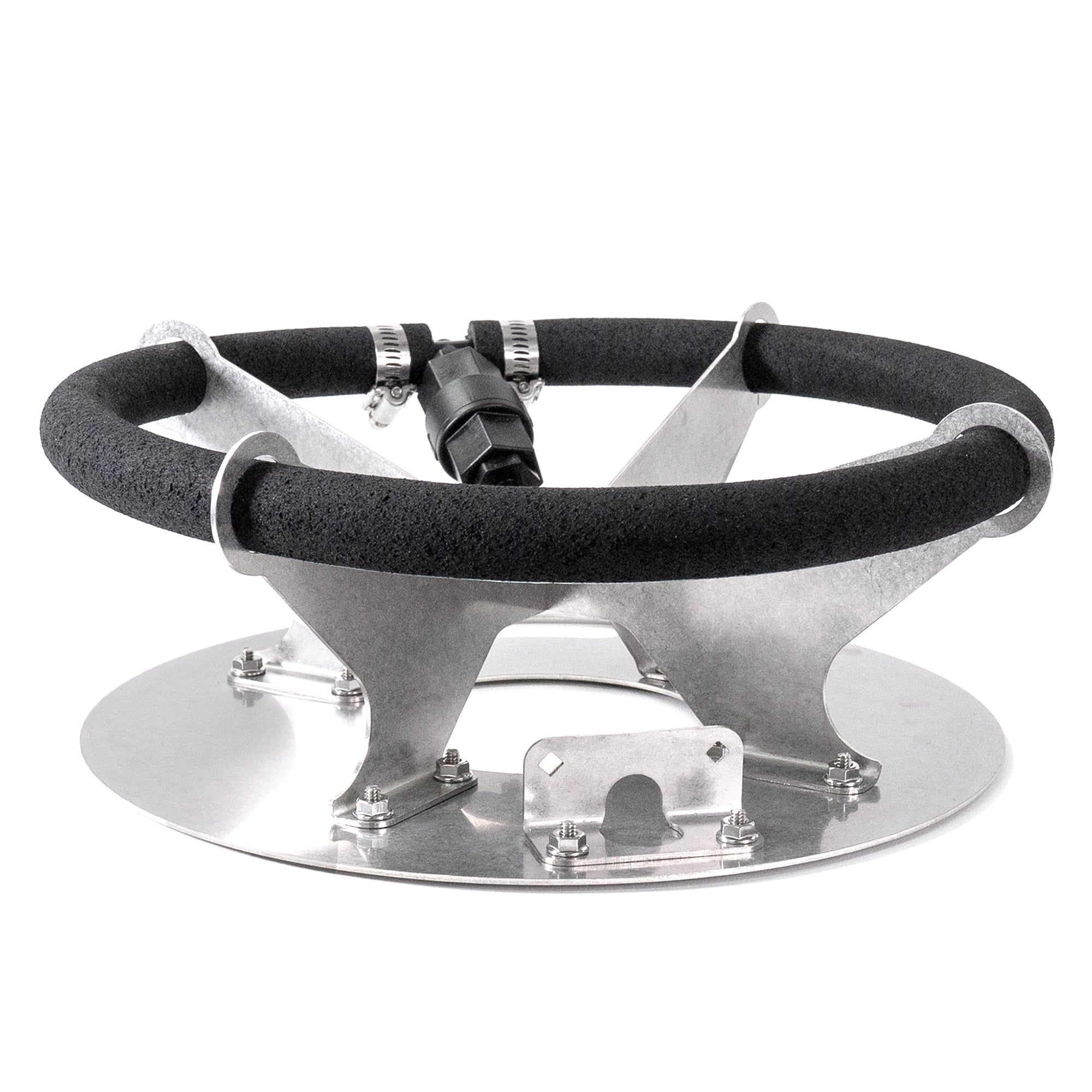

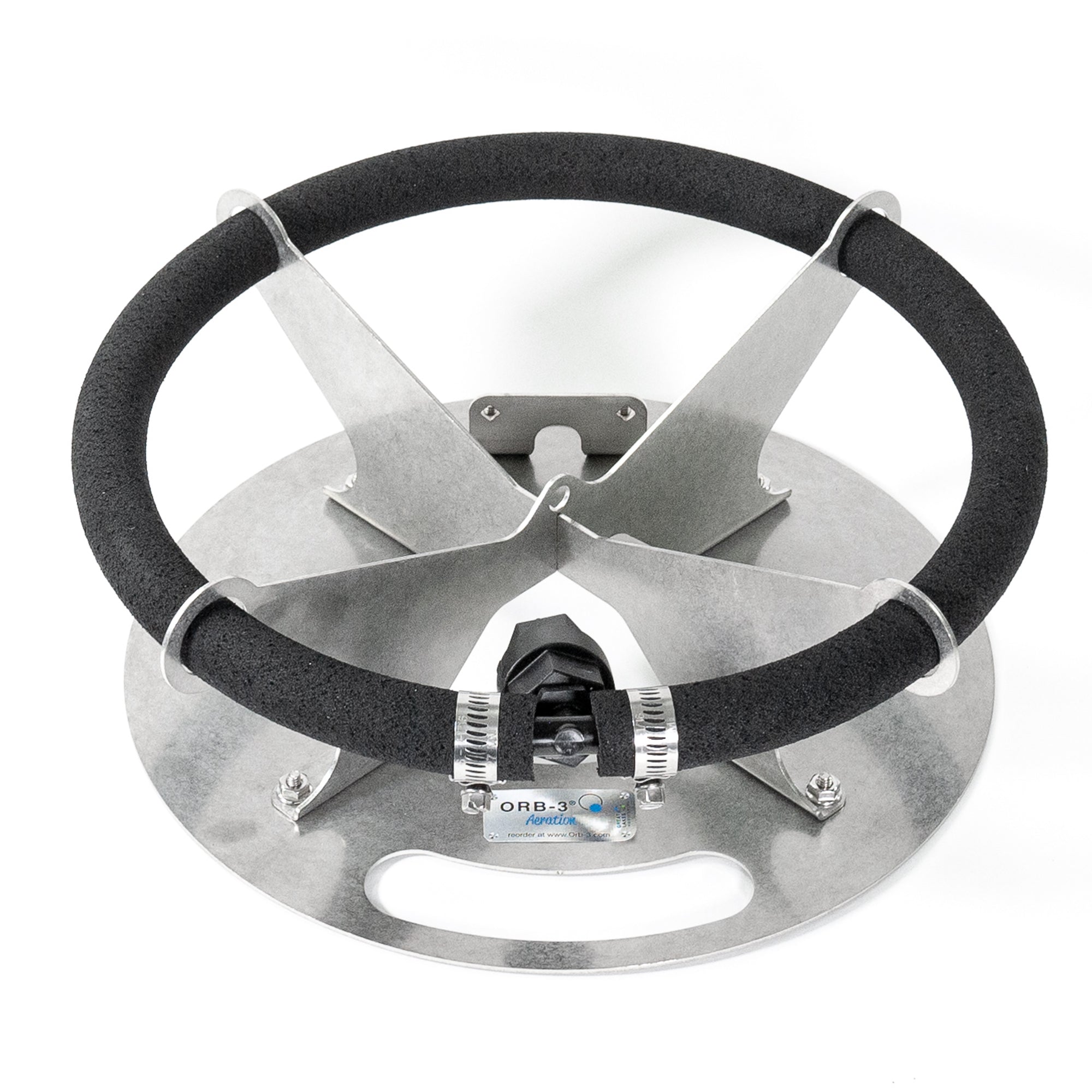

Orb-3 Aeration Eclipse EC44 Diffuser

Orb-3 Aeration Eclipse EC44 Diffuser

SKU: M219-000-1E
Type: Aeration Diffusers
$188.99
$194.83

Built to last, simple assembly and energy-efficiency are what makes the Eclipse EC44 a solid pond aerator diffuser.

Includes a perfectly weighted base, microporous aeration membrane, built-in check valve, hose barbs for 3/8" or 1/2" air line, tagline tie off spot and convenient handle all in one small footprint. No extra fittings required.

The Eclipse EC44 is engineered to have a high CFM capacity with low back-pressure, which reduces wear on your compressor.

Basic Assembly required.

Notify me when back in stock

Use for:

  • Diffuser / Aerator
  • Turnover / Mixing

Features

  • 36" of anti-fouling; microporous aeration tubing
  • Built-in check valve
  • 100% smooth stainless steel base
  • Corrosion resistant
  • Strain-relief clamp with built-in hose barbs for 3/8" or 1/2" air line
  • Built-In handle
  • Easy to assemble and install
  • Easy to clean and maintain
  • Produces 2-3mm bubbles for maximum aeration efficiency
  • Works with any compressor sized to deliver desired SCFM and PSI
  • For use in inland lakes & pond, brackish water & most tank applications
  • Basic Assembly is required

Read more Read Less

feature_image
faq-img

Specification

SCFM Range

1.5 - 6.0

Maximum Pressure

50 PSI

Construction

Stainless steel base, nuts and bolts

Fitting Size

3/8" or 1/2"

Requirement

  • 3/8” or 1/2" airline
  • Compressor sized to deliver desired PSI and SCFM

Minimum Operating Depth

2 feet

Active Surface Area

96 sq in

Linear Lift

72"

Flow Interference

1.0"

Warranty

5 years

Read more Read Less

FAQ

What types of water does this diffuser work in? + -

The Eclipse diffusers are unaffected by Salt-Sater, Brackish Water or Frac Flowback.

Do I need a separate air pump for this? + -

Yes, in addition to the diffuser you will need at minimum a compressor and air line to get from the compressor to the diffuser.

Description

Sturdy design, simple assembly and energy-efficiency are what makes the Eclipse EC44 a solid choice.

This device takes the guesswork out of choosing a diffuser and includes a perfectly weighted base, microporous aeration membrane, built-in check valve, hose barbs for 3/8" or 1/2" air line, tagline tie off spot and convenient handle all in one small footprint. No extra fittings required. The best part is you won’t be wondering how much pea gravel you really need to hold this unit down on the bottom of the pond.

The Eclipse EC44 is engineered to have a high CFM capacity with low back-pressure, which reduces wear on your compressor. It’s flat-packed so it ships economically making this fine bubble diffuser a smart choice.

Basic Assembly required.
