EasyPro Quick Sink Self-Weighted Diffusers QS1 QS2 QSBASE

EasyPro Quick Sink Self-Weighted Diffusers QS1 QS2 QSBASE

SKU: ZSC-QS1
Type: Aeration Diffusers
$138.74
$149.99

Same great diffuser performance now in a self sinking design!

Quick Sink, self weighted membrane air diffuser assemblies are designed to be placed at the bottom of a pond or lake. The self weighted design eliminates need for gravel and reduces installation time. The Quick Sink diffuser assembly features round rubber (ZSC-MD3) membrane diffusers with thousands of holes which produce small air bubbles when supplied with air from an on shore compressor. These bubbles rise to the surface and create circulation that helps de-stratify and aerate the water body.

Choose from:

QS1: Weighted base plus single MD3 diffuser
QS2: Weighted base plus dual MD3 diffusers
QSBASE: Base Only, supply your own diffuser(s).

Note:

  • Not for brackish or salt water applications — Use ZSC-EPMD1 or ZSC-EPMD2 plastic base units for those applications.
  • Metal base may experience surface rusting. This does not typically affect performance and is not considered a warranty issue.
Diffusers

Notify me when back in stock

Use for:

  • Diffuser / Aerator

Features

  • Fine bubble diffusers for maximum lift and oxygen transfer efficiency
  • Low maintenance rubber membrane diffusers in single or double configuration

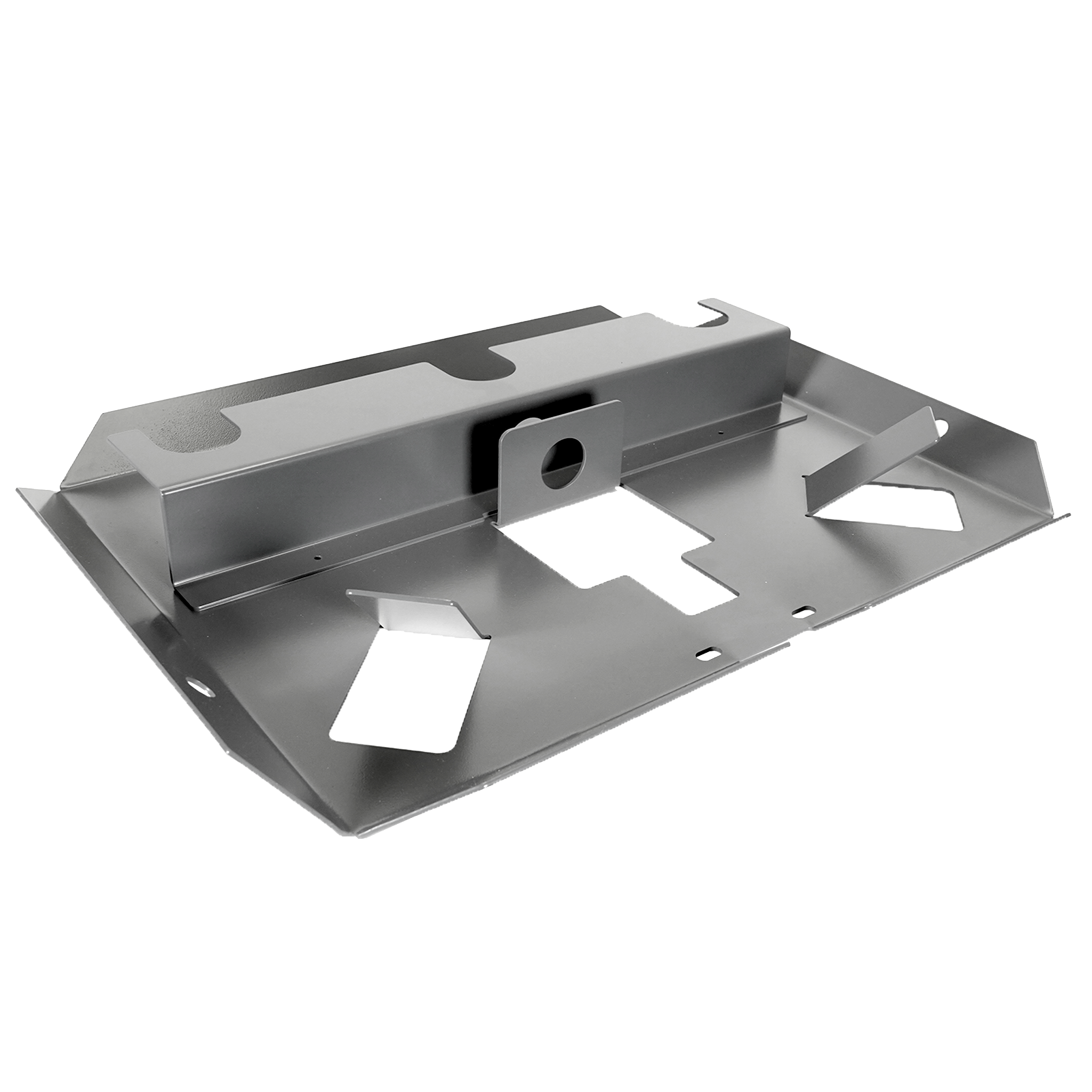

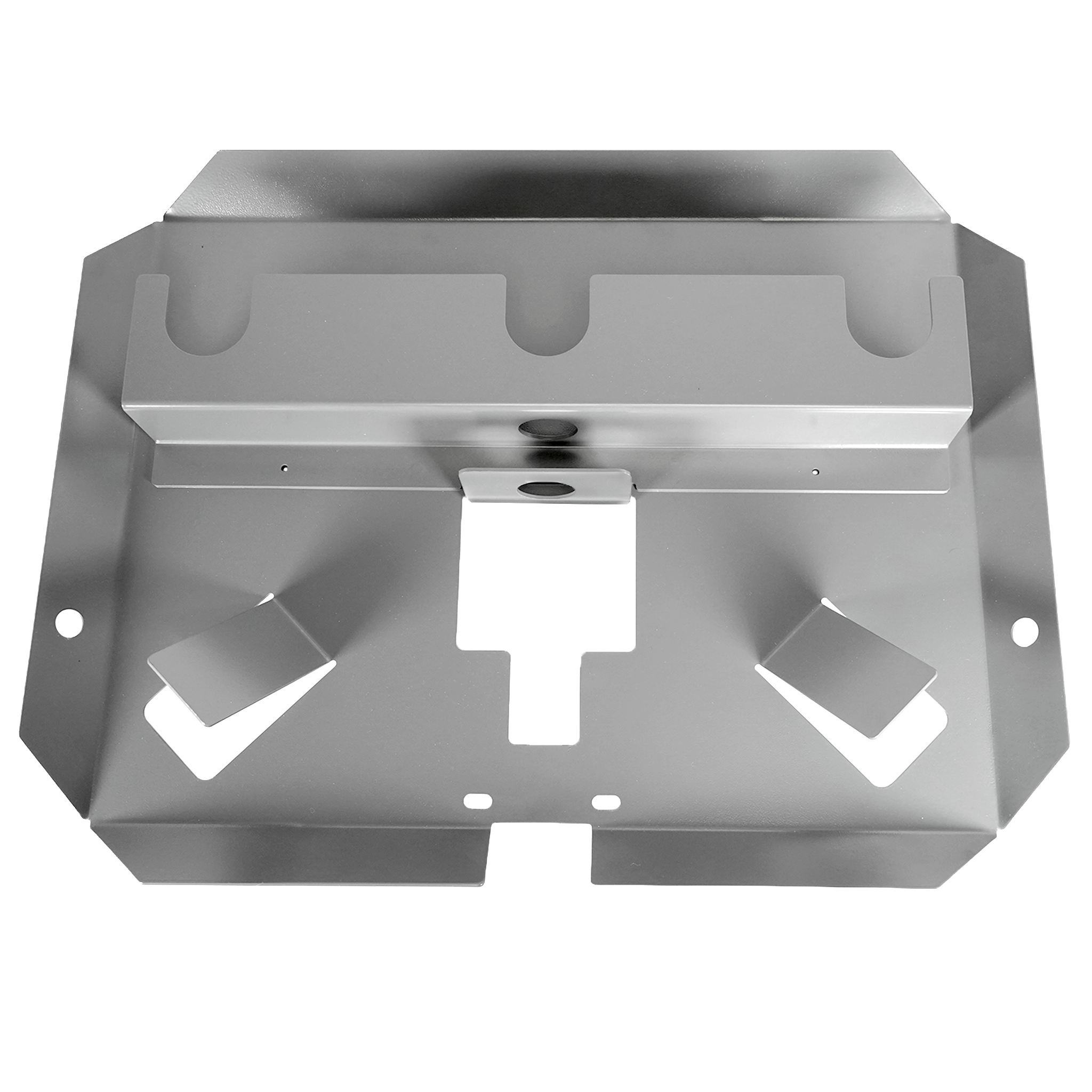

  • Self weighted, powder coated steel base
  • Low head pressure loss
  • Inlet air fittings (included) accepts 3/8″, 1/2″ or 5/8″ tubing
  • Unique barbed fittings with built in check valves to keep water out of tubing
  • Stainless steel hose clams and strain relief hardware
  • Designed for fresh water applications
  • Five year warranty

Read more Read Less

feature_image
variant--img

EasyPro QS1

Ship Weight: 9 lbs

variant--img

EasyPro QS2

Ship Weight: 11 lbs

variant--img

EasyPro QSBASE

Ship Weight: 8 lbs

faq-img

Specification

Recommended Air Flow

  • QS1: 0.8 - 3 CFM
  • QS2: 1.6 - 6 CFM
  • QSBASE: N/A

Overall Height

  • QS1, QS2: 4.25 inches

Construction

Powder-coated Steel, Schedule 80 PVC

Fitting Size

3/4" FNPT

Inlet Air Fittings (Included)

  • Accepts 3/8", 1/2", or 5/8" tubing

Warranty

5 years

Read more Read Less

FAQ

Can I buy the diffuser by itself, without the base? + -

Yes, the EasyPro MD3 is great if you need a replacement diffuser or for DIY applications.

Description

Same great diffuser performance now in a self sinking design!

Quick Sink, self weighted membrane air diffuser assemblies are designed to be placed at the bottom of a pond or lake. The self weighted design eliminates need for gravel and reduces installation time. The Quick Sink diffuser assembly features round rubber (ZSC-MD3) membrane diffusers with thousands of holes which produce small air bubbles when supplied with air from an on shore compressor. These bubble rise to the surface and create circulation that helps de-stratify and aerate the water body.

Choose from:

QS1: Weighted base plus single MD3 diffuser

QS2: Weighted base plus dual MD3 diffusers

QSBASE: Base Only, supply your own diffuser(s).

Note:

  • Not for brackish or salt water applications — Use ZSC-EPMD1 or ZSC-EPMD2 plastic base units for those applications.
  • Metal base may experience surface rusting. This does not typically affect performance and is not considered a warranty issue.

Read more Read Less

feature_image
feature_image

Resources

EasyPro QS1 QS2 QSBASE Instructions

EasyPro QS1 QS2 QSBASE Spec Sheet
